Electrical Valves

We provide reliable, high-quality electrical valve solutions tailored for industrial and commercial use.

Explore Products

Electric Valves

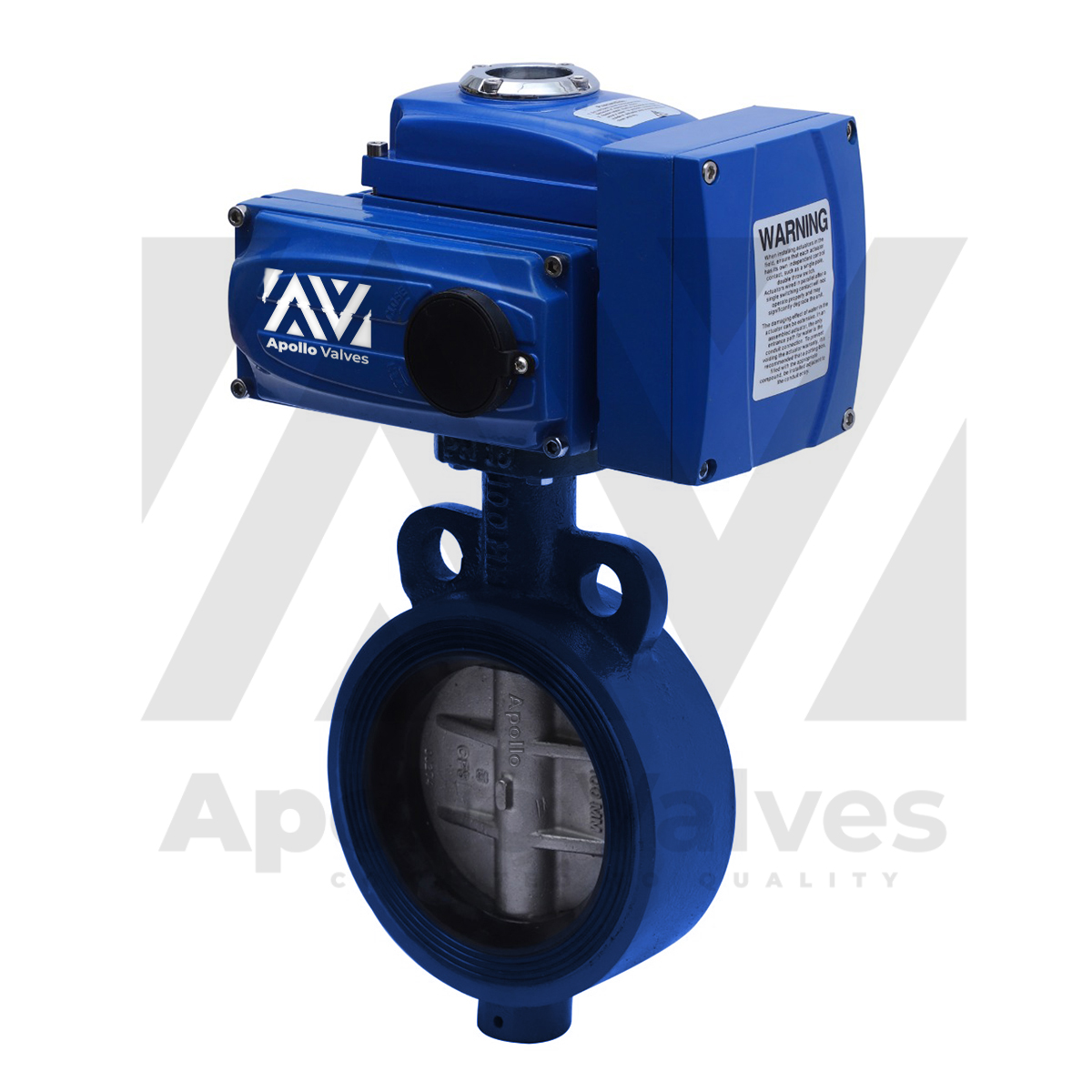

Butterfly Valve With Electric Actuator

Butterfly Valve With Electric Actuator

  • Actuator: Electrical
  • Size Range: 1.1/2” To 20”
  • Valve Body: Cast Iron/SS304/316
  • Disc: SG Iron/CF8/CF8M
  • Seal: Nitrile/EPDM
  • Pressure Rating: PN16 (Max)
  • Operating Temp Range: 80°C/120°C
  • Coil Voltage: 230V AC & 24V DC
  • Available in: 4 to 20 MA

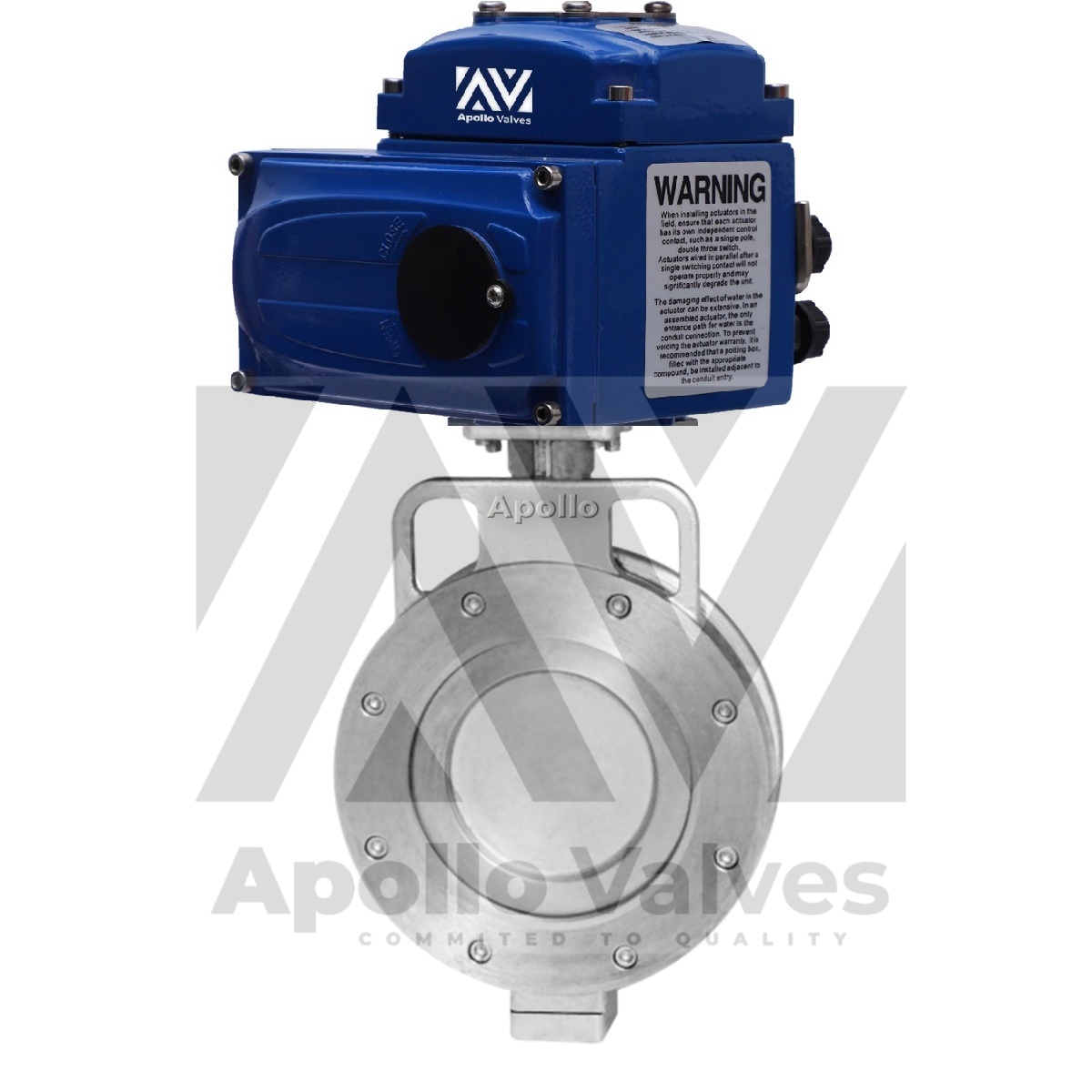

Off Set Disc Butterfly Valve with Electric Actuator

Off Set Disc Butterfly Valve with Electric Actuator

  • Actuator: Single/Double Acting
  • Size Range: 1.1/2” To 12”
  • Valve Body: CF8/CF8M/WCB
  • Disc: CF8/CF8M
  • Seat: PTFE Replaceable/GFT
  • Mounting: Universal
  • Pressure Rating: ANSI 150#
  • Operating Temp Range: 180°C/220°C
  • Coil Voltage: 230V AC & 24V DC
  • Available in: 4 to 20 MA

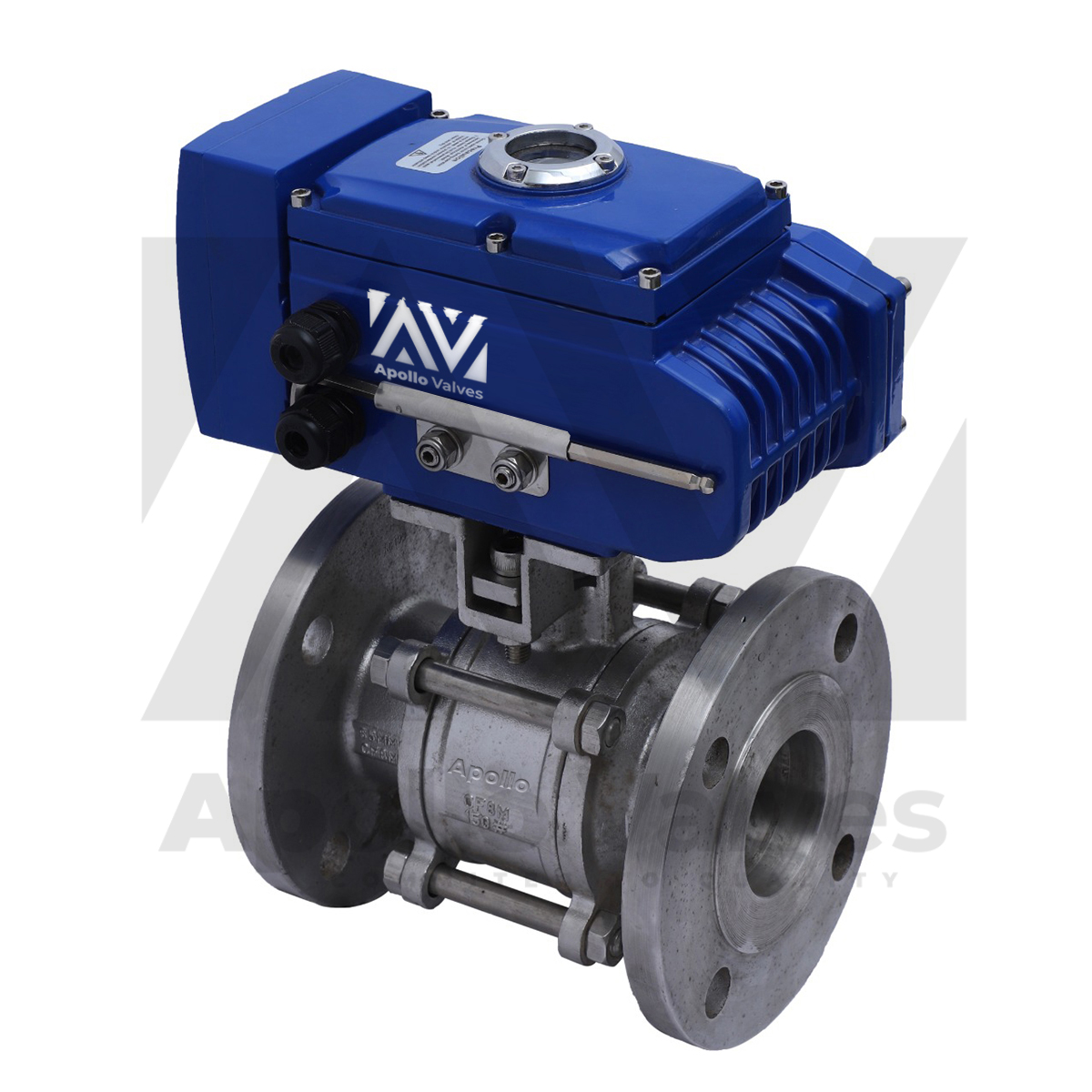

3Pc-2way Ball Valve With Electrical Actuator

3Pc-2way Ball Valve With Electrical Actuator

  • Actuator: Electrical
  • Size Range: ½” To 6”
  • Ways: 3 Way Piece Design
  • MOC: CF8/CF8M/WCB/PP/UPVC
  • Ends: Screwed/Flanged/Socket Weld
  • Coil Voltage: 230V AC & 24V DC
  • Available in: 4 to 20 MA

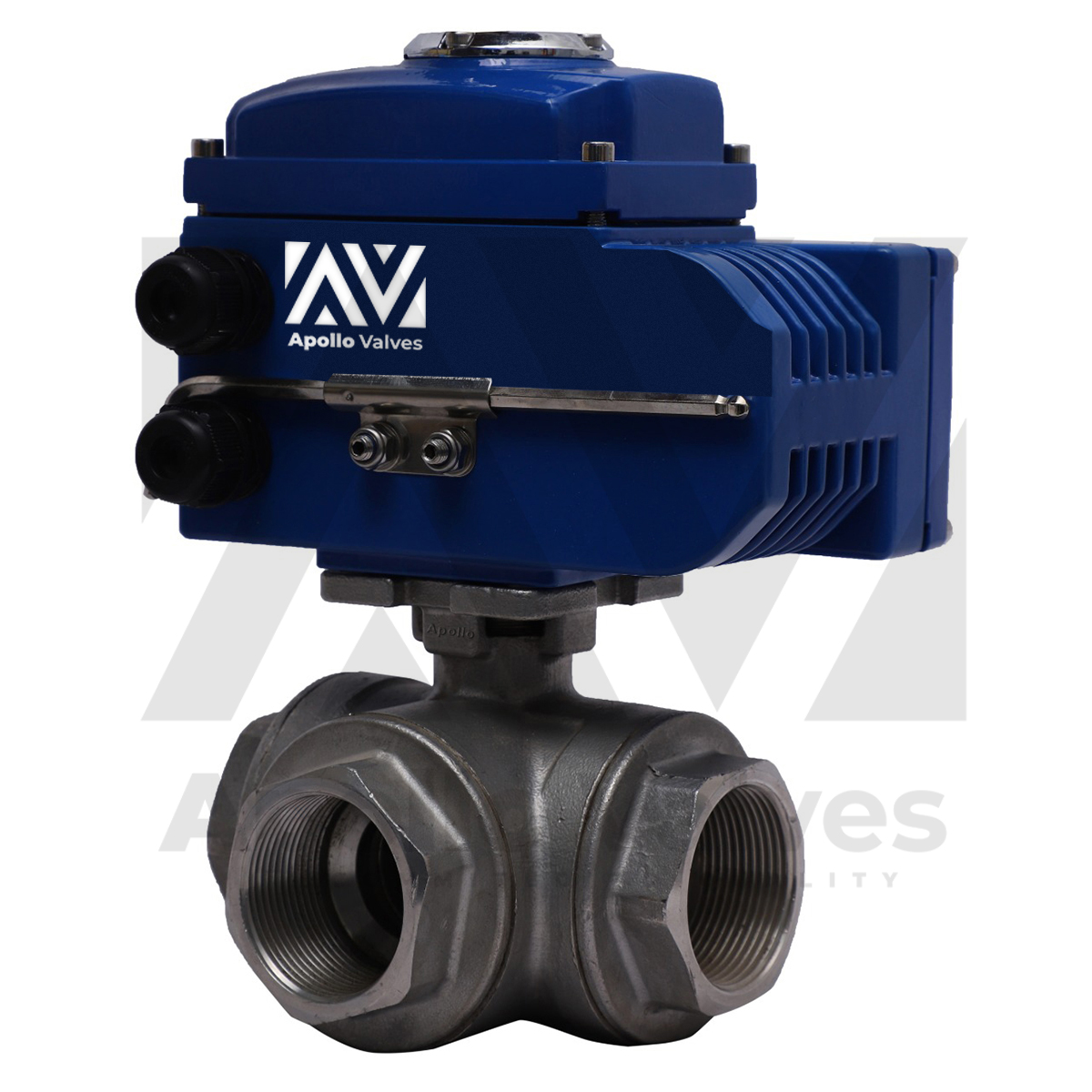

3-Way Ball Valve with Electrical Actuator

3-Way Ball Valve with Electrical Actuator

  • Actuator: Electrical
  • Size Range: 1/2’’ To 6’’
  • Ways: 3 Way
  • MOC: CF8/CF8M/WCB/PP
  • Ends: Screwed/Flanged/Socket Weld
  • Coil Voltage: 230V AC & 24V DC
  • Available in: 4 to 20 MA

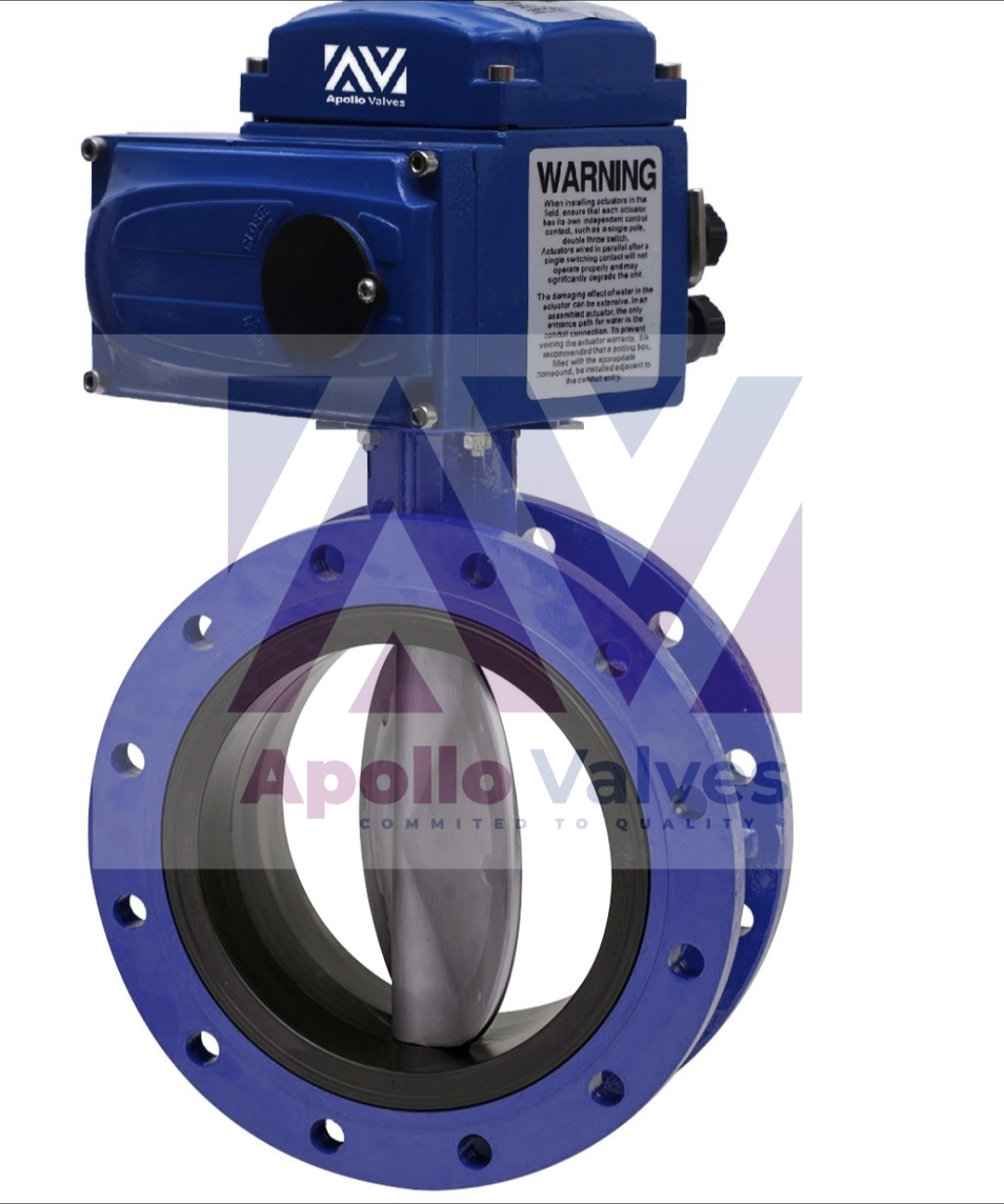

Double Flange Butterfly Valve with Electric Actuator

Double Flange Butterfly Valve with Electric Actuator

  • Actuator: Electrical
  • Size Range: 3” To 24”
  • Valve Body: Cast Iron
  • Disc: CF8/CF8M
  • Seal: Nitrile/EPDM/Viton
  • Pressure: PN16 (Max)
  • Temperature: 80°C
  • Coil Voltage: 230V AC & 24V DC
  • Available in: 4 to 20 MA

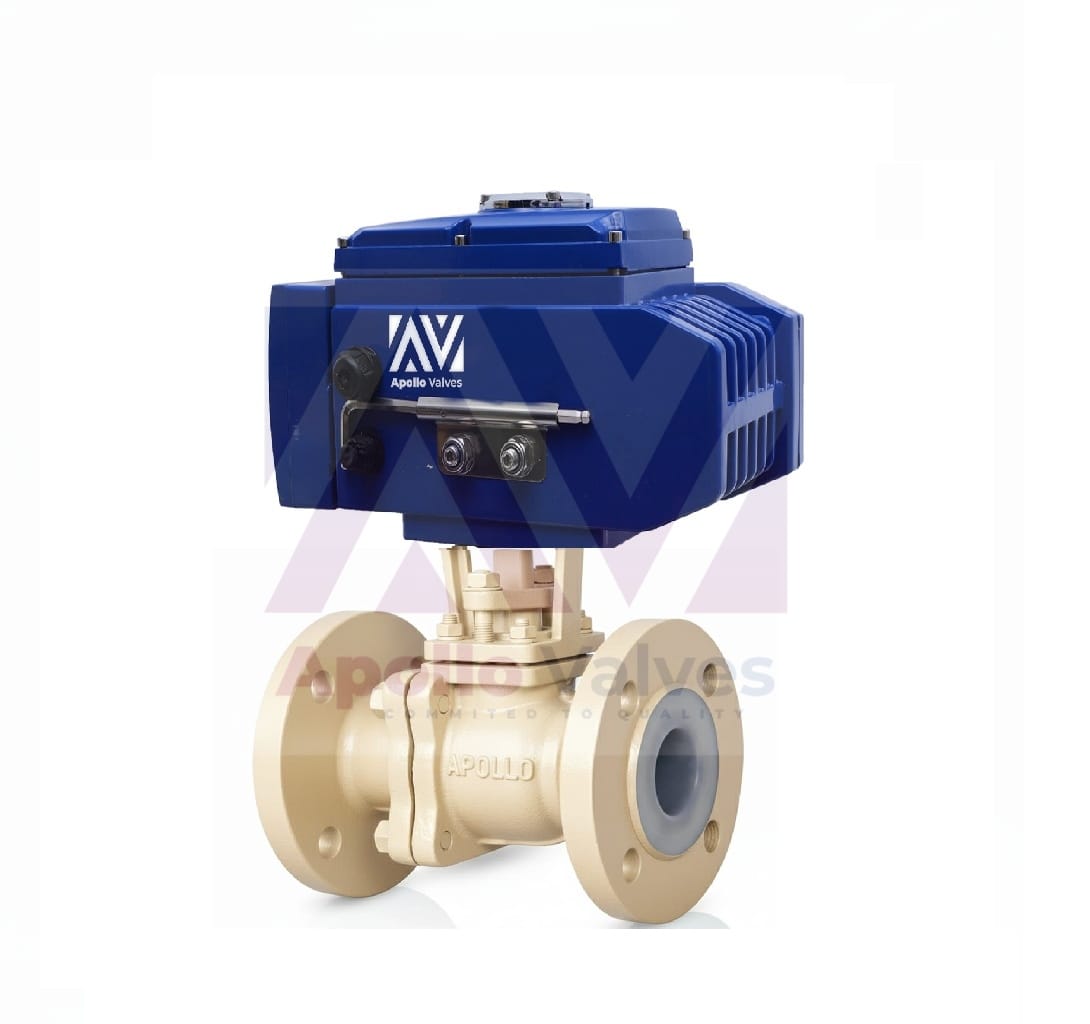

PTFE (FEP-PFA) Lined Ball Valve with Electric Actuator

PTFE (FEP-PFA) Lined Ball Valve with Electric Actuator

  • Actuator: Electrical
  • Size Range: 1/2” To 8”
  • Valve Body: CF8/CF8M/WCB
  • Lining: FEP/PFA
  • Seal: PTFE/GFT
  • Pressure: 150#1
  • Temperature: FEP: 180°C, PFA: 230°C
  • Available: In Pneumatic
  • Coil Voltage: 230V AC & 24V DC
  • Available in: 4 to 20 MA

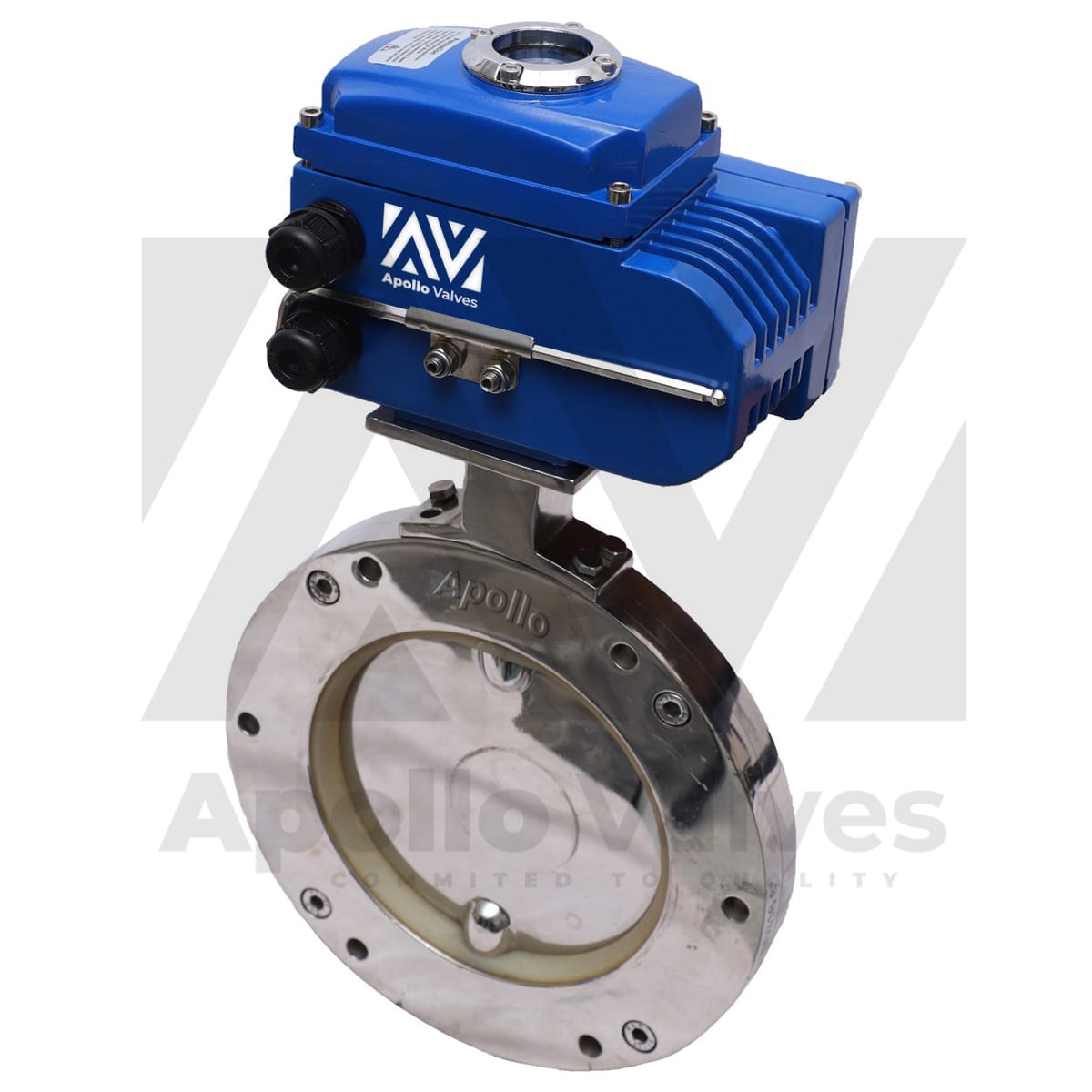

Pharma Butterfly Valve with Electric Actuator

Pharma Butterfly Valve with Electric Actuator

  • Actuator: Electrical
  • Size Range: 2” To 12”
  • Valve Body: CF8/CF8M
  • Disc: CF8/CF8M
  • Seal: Silicon
  • Pressure: PN16 (Max)
  • Temperature: 80°C
  • End Connection: Sandwitch Type
  • Coil Voltage: 230V AC & 24V DC
  • Available in: 4 to 20 MA
Aluminium Butterfly Valve with Electric Actuator

Aluminium Butterfly Valve with Electric Actuator

  • Actuator: Electrical
  • Size Range: 2” To 12”
  • Valve Body: Aluminium
  • Disc: CF8/CF8M
  • Seal: EPDM
  • Pressure: PN16 (Max)
  • Temperature: 80°C
  • End Connection: Wafer Type
  • Coil Voltage: 230V AC & 24V DC
  • Available in: 4 to 20 MA

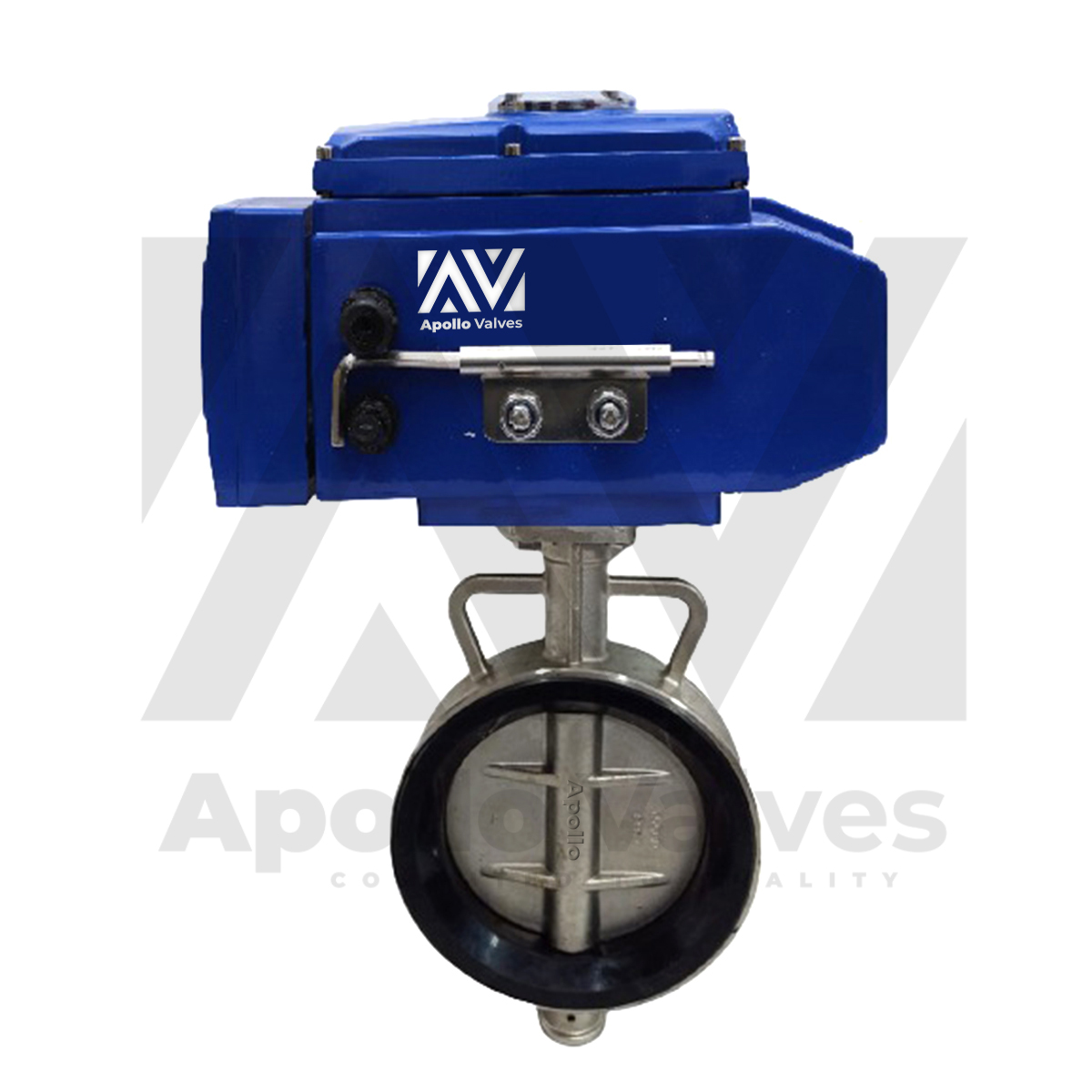

IC 304 Butterfly Valve with Electric Actuator

IC 304 Butterfly Valve with Electric Actuator

  • Actuator: Electrical
  • Size Range: 1/2” To 4”
  • Valve Body: CF8/CF8M
  • Disc: CF8/CF8M
  • Seal: EPDM/VITON
  • Pressure: PN16 (Max)
  • Temperature: 120°C
  • End Connection: Wafer Type
  • Coil Voltage: 230V AC & 24V DC
  • Available in: 4 to 20 MA

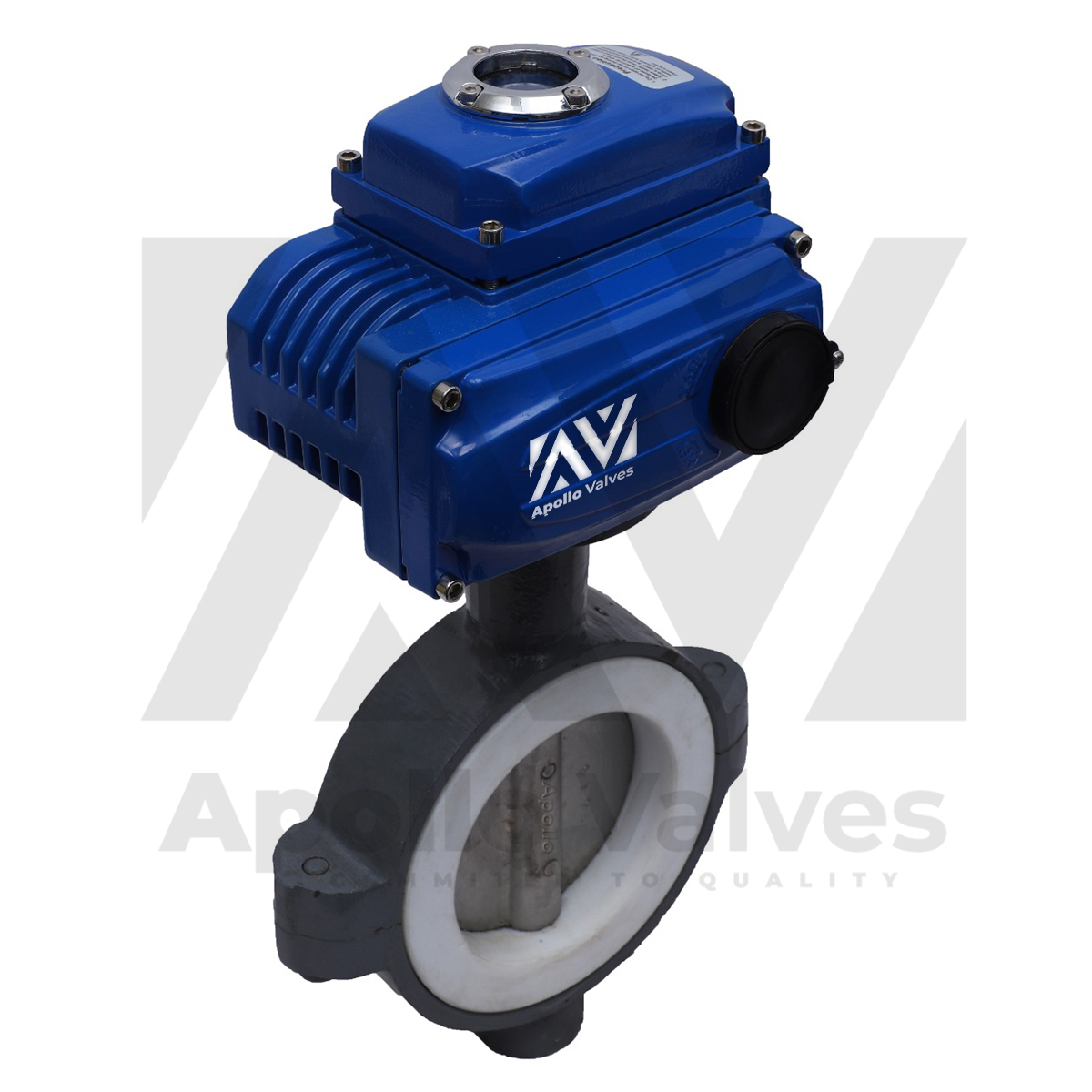

PTFE (FEP-PFA) Lined Butterfly Valve with Electric Actuator

PTFE (FEP-PFA) Lined Butterfly Valve with Electric Actuator

  • Actuator: Electrical
  • Size Range: 2" to 12"
  • Valve Body: CF8/CF8M/WCB
  • Lining: FEP/PFA
  • Seal: PTFE/GFT
  • Pressure: 150
  • Temperature: FEP: 180°C, PFA: 230°C
  • Available: In Pneumatic
  • Coil Voltage: 230V AC & 24V DC
  • Available in: 4 to 20 MA

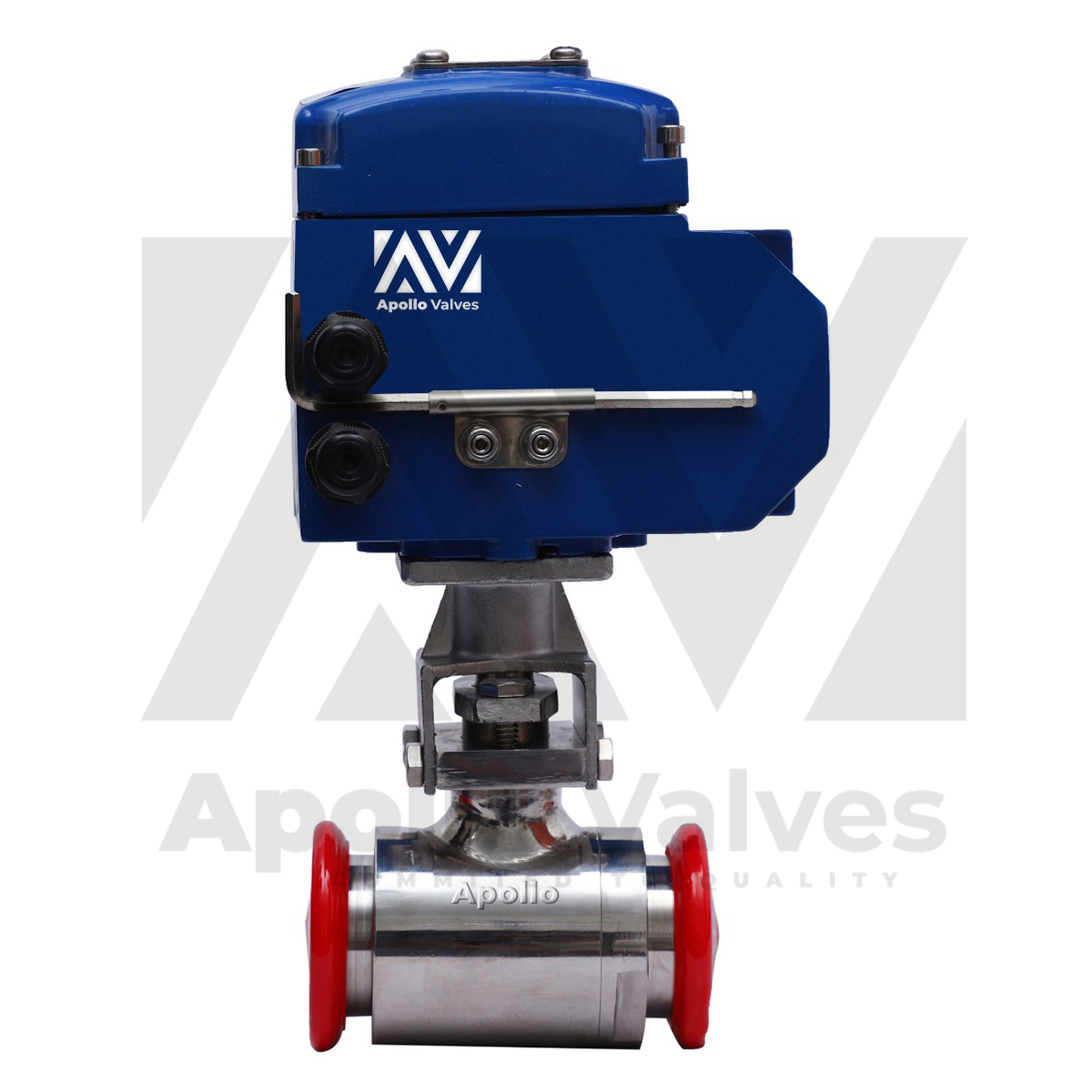

TC End Ball Valve with Electric Actuator

TC End Ball Valve with Electric Actuator

  • Actuator: Electrical
  • Size Range: 1/2” To 4”
  • Valve Body: CF8/CF8M
  • Disc: CF8/CF8M
  • Seal: Silicon
  • Pressure: PN16 (Max)
  • Temperature: 180°C
  • End Connection: TC End/Union Type
  • Coil Voltage: 230V AC & 24V DC
  • Available in: 4 to 20 MA

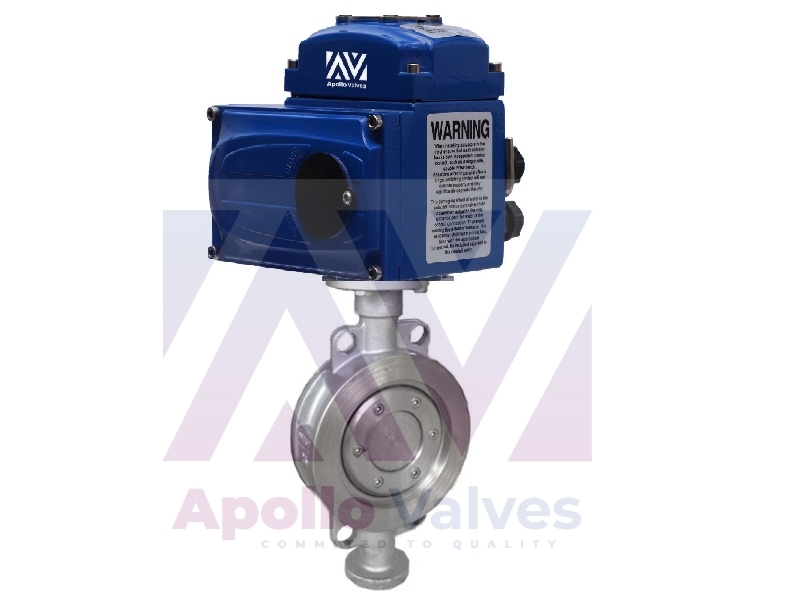

Electric Tripple Offset Butterfly Valve

Electric Tripple Offset Butterfly Valve

  • Actuator: Single Phase
  • Size Range: 3" to 22"
  • Valve Body: WCB/CF8/CF8M/duplex/CF3M
  • Disc: CF8/CF8M
  • Stem: 20CR13,304,316,17-PH
  • Seat: 13CR,304,316,STL Metal
  • Leakage Class:VI
  • Available in: 4 to 20 MA
  • Temperature: 350°C to 1500 °C
  • End Connection: Wafer Type Double Flange
  • Coil Voltage: 230V AC & 24V DC
  • Available in: 4 to 20 MA

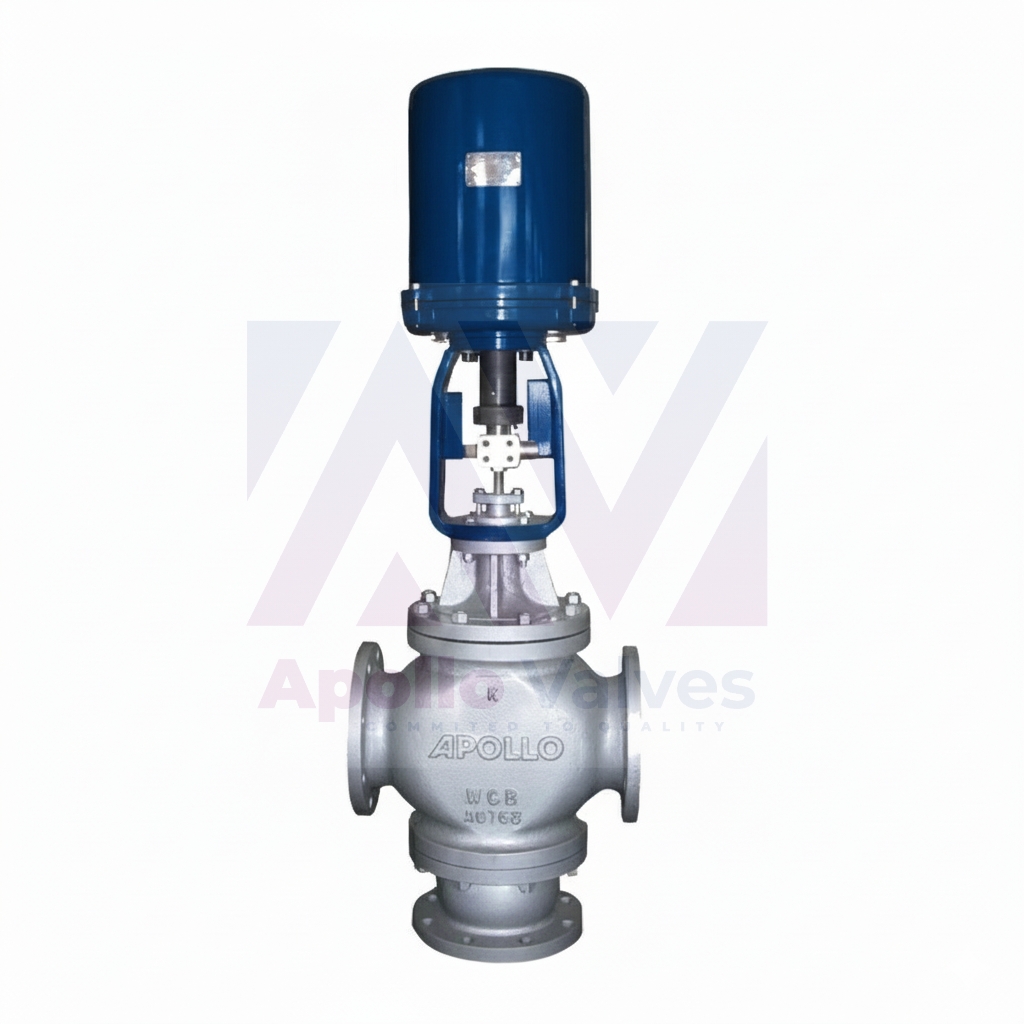

Electric Control Valve

Electric Control Valve

  • Actuator: Single Phase/Modulating 4 to 20 MA
  • Size Range: 1" to 12"
  • Valve Body: WCB/CF8/CF8M
  • Disc: CF8/CF8M
  • Stem: 304/316
  • Seat: PTFE SEATED/METAL TO METAL SEATED
  • Leakage Class:VI
  • Temperature: 180°C to 450 °C
  • End Connection: Flanged End 150#/300# 2 Way/3 Way
  • Coil Voltage: 230V AC & 24V DC

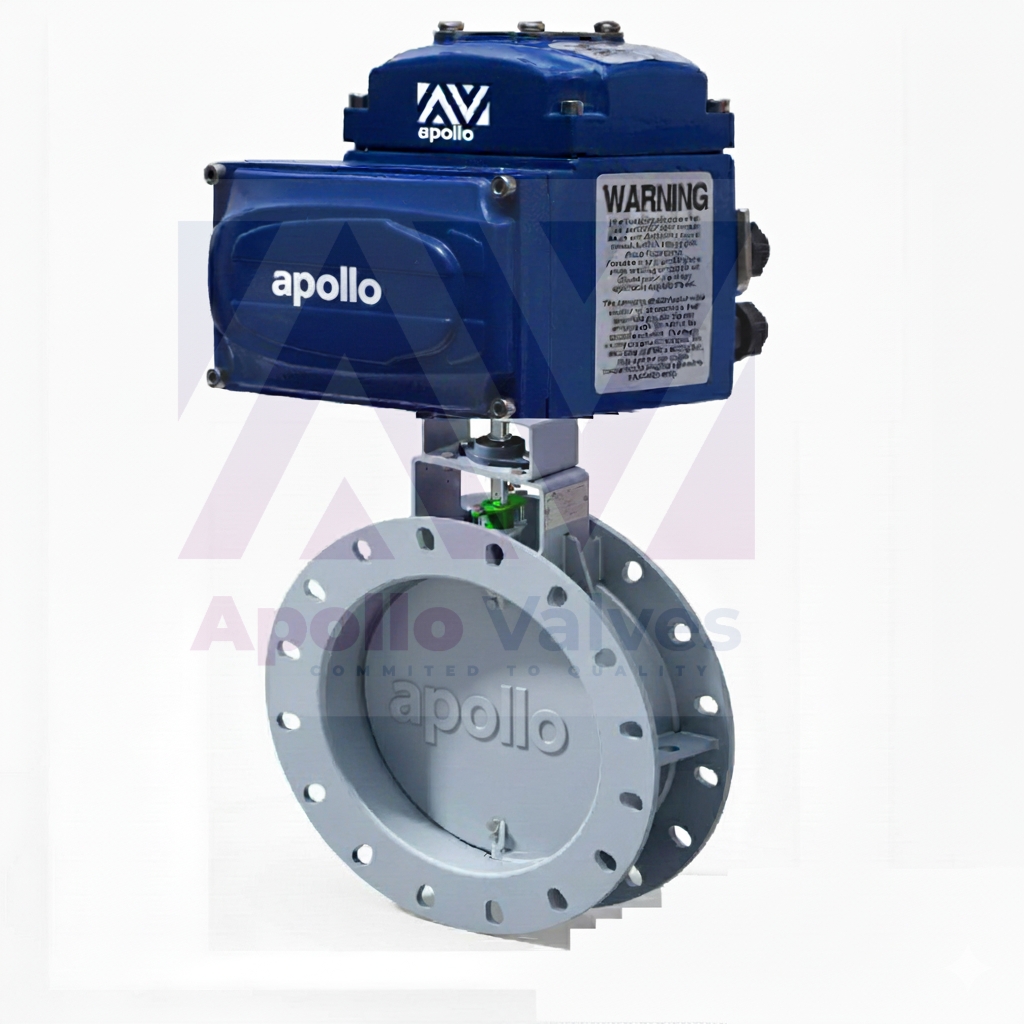

Electric Damper Valve

Electric Damper Valve

  • Actuator: Single Phase/Modulating 4 to 20 MA
  • Size Range: 2" to 22"
  • Valve Body: WCB/CF8/CF8M/duplex/CF3M
  • Disc: CF8/CF8M
  • Stem: SS
  • Seat: Metal
  • Leakage Class:IV & V
  • Temperature: 220°C to 450 °C
  • End Connection: Wafer Type Double Flange
  • Coil Voltage: 230V AC & 24V DC

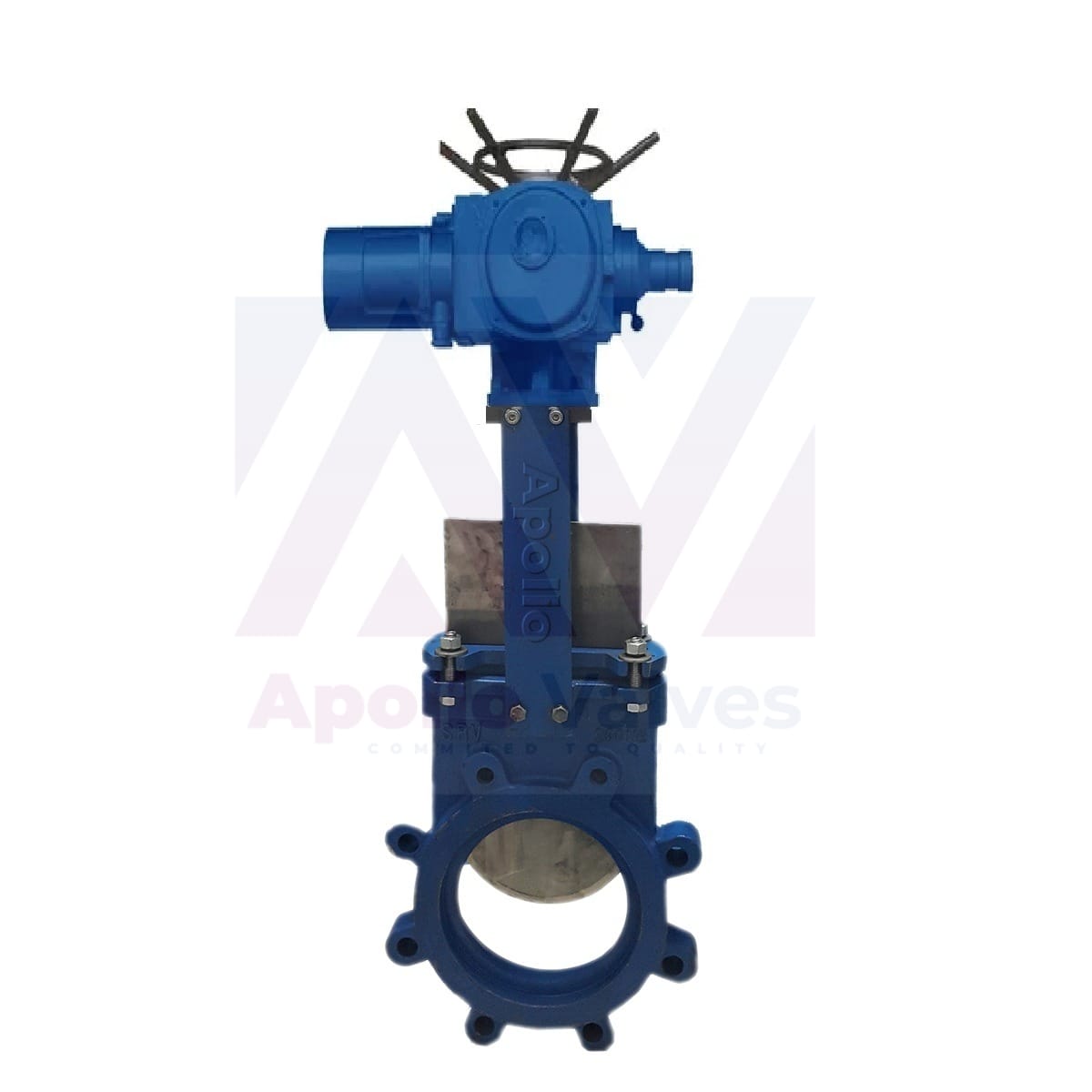

Electric Knife Gate Valve

Electric Knife Gate Valve

  • Actuator: Single Phase/Modulating 4 to 20 MA
  • Size Range: 2" to 22"
  • Valve Body: WCB/CF8/CF8M/duplex/CF3M
  • Disc: CF8/CF8M
  • Stem: SS
  • Seat: Metal
  • Leakage Class:IV & V
  • Temperature: 220°C to 450 °C
  • End Connection: LUG Type
  • Coil Voltage: 230V AC & 24V DC
