Lined Valves

FEP and PFA fluoropolymer lined valves engineered for highly corrosive chemical service — spark tested to 15 KVDC, lining thickness 3–4 mm, suitable for acids, alkalis and aggressive solvents up to 260°C.

Lined Valves

Available Models & Configurations

Click Send Enquiry on any product to send us your requirement instantly via WhatsApp.

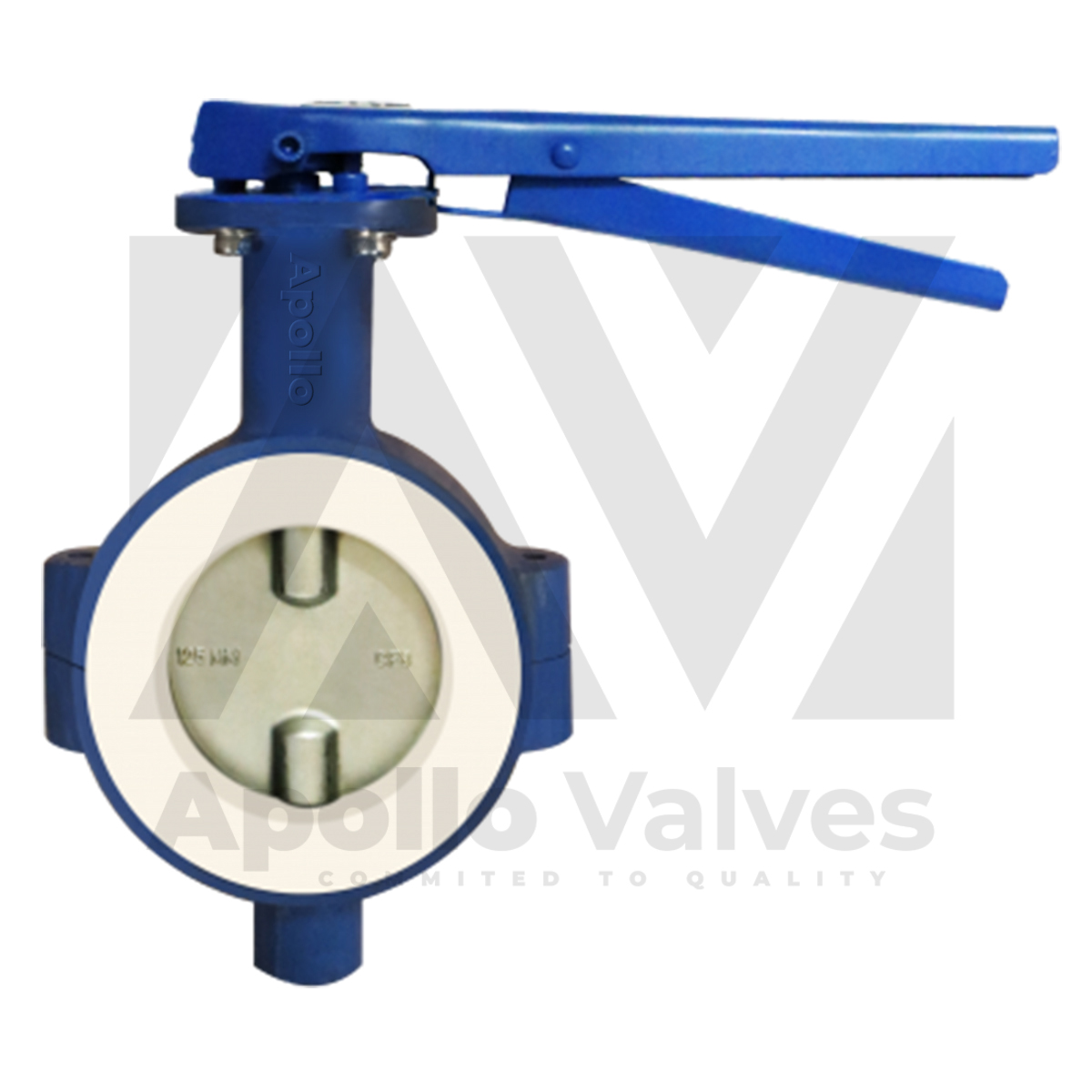

Manual 2 Piece Design Teflon Seated Butterfly Valve

Manual 2 Piece PTFE Seated Butterfly Valve

  • Body: Carbon Steel (CS)
  • Disc: CF8
  • Seat: PTFE Lined
  • Mfg Std: BS 5155
  • Test Std: BS 6755 (Part II)
  • Lining Thick.: 3.00 mm To 4.00 mm
  • Spark Test: 10 KVDC
  • Ends: Wafer Type (ASME B16.5 - 150#)
  • Hyd Test: Body: 7 Kg/cm² | Seat: 7 Kg/cm²
  • Size Range: 40 mm To 400 mm

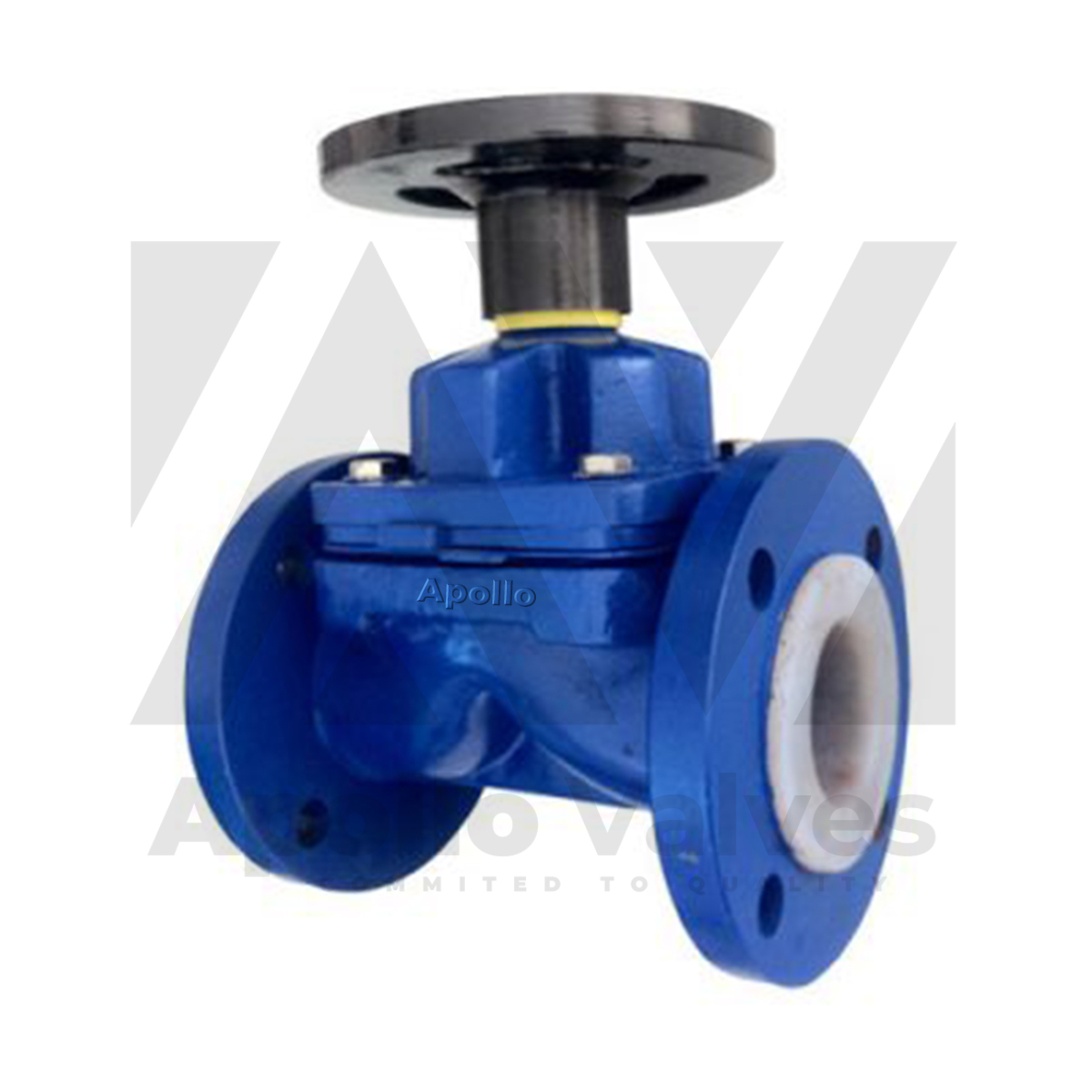

FEP PFA Lined Diaphragm Valve

FEP / PFA Lined Diaphragm Valve

  • Body: CS with FEP / PFA Lining
  • Bonnet: ASTM A216 Gr WCB
  • Lining Thick.: 3.00 mm To 4.00 mm
  • Temp (FEP): Up to 200°C
  • Temp (PFA): Up to 260°C
  • Spark Test: 15 KVDC
  • Ends: Flanged (ASME B16.5)
  • Hyd Test: Body: 10 Kg/cm² | Seat: 10 Kg/cm²
  • Size Range: 25 mm To 200 mm

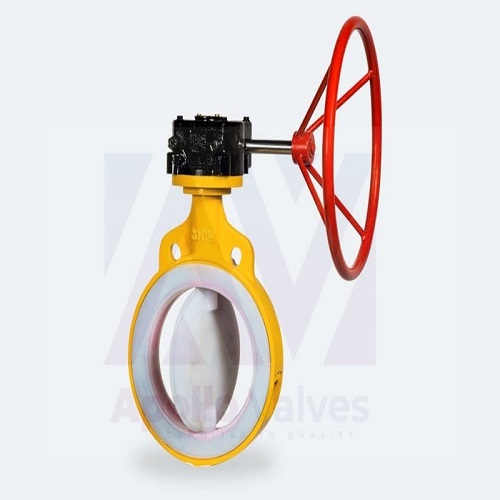

FEP Lined Butterfly Valve

FEP Lined Butterfly Valve

  • Body: Carbon Steel (CS)
  • Disc: CF8 + FEP / PFA Lined
  • Seat: PTFE
  • Mfg Std: BS 5155
  • Lining Thick.: 3.00 mm To 4.00 mm
  • Temperature: Up to 250°C
  • Spark Test: 10 KVDC
  • Ends: Wafer Type (ASME B16.5 - 150#)
  • Hyd Test: Body: 7 Kg/cm² | Seat: 7 Kg/cm²
  • Size Range: 40 mm To 400 mm
FEP PFA Lined Flanged End Ball Valve

FEP / PFA Lined Flanged End Ball Valve

  • Body: CS with FEP / PFA Lining
  • Ball: ASTM A216 Gr WCB + FEP / PFA Lined
  • Stem: ASTM A216 Gr WCB + FEP / PFA Lined
  • Lining Thick.: 3.00 mm To 4.00 mm
  • Temperature: Up to 250°C
  • Spark Test: 15 KVDC
  • Ends: Flanged (ASME B16.5 - 150#)
  • Hyd Test: Body: 10 Kg/cm² | Seat: 10 Kg/cm²
  • Size Range: 15 mm To 200 mm

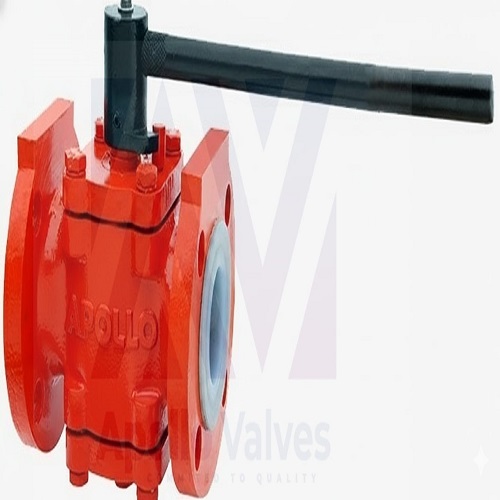

PFA Lined Plug Valve

PFA Lined Plug Valve

  • Body: CS with FEP / PFA Lining
  • Plug: ASTM A216 Gr WCB + FEP / PFA Lined
  • Diaphragm: PTFE
  • Lining Thick.: 3.00 mm To 4.00 mm
  • Temperature: Up to 250°C
  • Spark Test: 15 KVDC
  • Ends: Flanged (ASME B16.5 - 150#)
  • Hyd Test: Body: 10 Kg/cm² | Seat: 10 Kg/cm²
  • Size Range: 15 mm To 200 mm

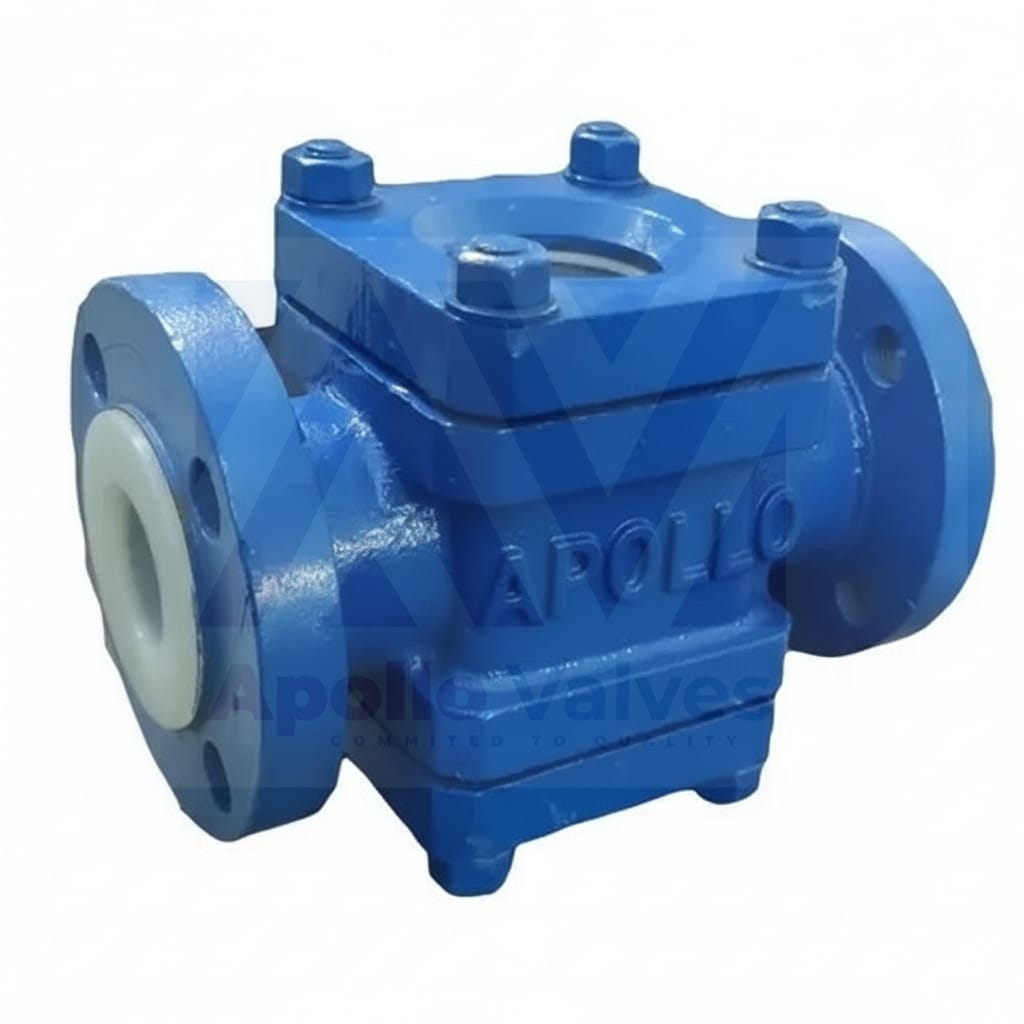

PFA Lined Side View Glass

PFA Lined Side View Glass

  • Body: CS with FEP / PFA Lining
  • Glass: Borosil Toughened Glass
  • Lining Thick.: 3.00 mm To 4.00 mm
  • Temperature: Up to 250°C
  • Spark Test: 15 KVDC
  • Ends: Flanged (ASME B16.5 - 150#)
  • Hyd Test: Body: 10 Kg/cm² | Seat: 10 Kg/cm²
  • Size Range: 50 mm To 150 mm

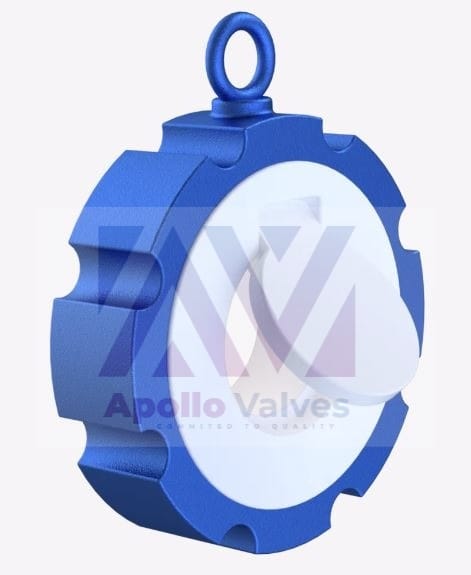

PFA Lined Wafer Type Check Valve

PFA Lined Wafer Type Check Valve

  • Body: CS with FEP / PFA Lining
  • Disc: Carbon Steel
  • Type: Wafer Check Valve
  • Lining Thick.: 3.00 mm To 4.00 mm
  • Temperature: Up to 250°C
  • Spark Test: 15 KVDC
  • Ends: Flanged (ASME B16.5 - 150#)
  • Hyd Test: Body: 10 Kg/cm² | Seat: 10 Kg/cm²
  • Size Range: 50 mm To 150 mm

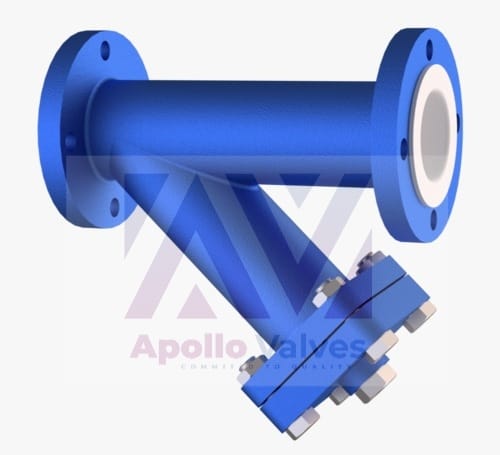

PFA Lined Y Strainer

PFA Lined Y-Strainer

  • Body: CS with FEP / PFA Lining
  • Mesh: SS 304
  • Diaphragm: PTFE
  • Lining Thick.: 3.00 mm To 4.00 mm
  • Temperature: 250°C To 300°C
  • Spark Test: 15 KVDC
  • Ends: Flanged (ASME B16.5 - 150#)
  • Hyd Test: Body: 10 Kg/cm² | Seat: 10 Kg/cm²
  • Size Range: 50 mm To 150 mm

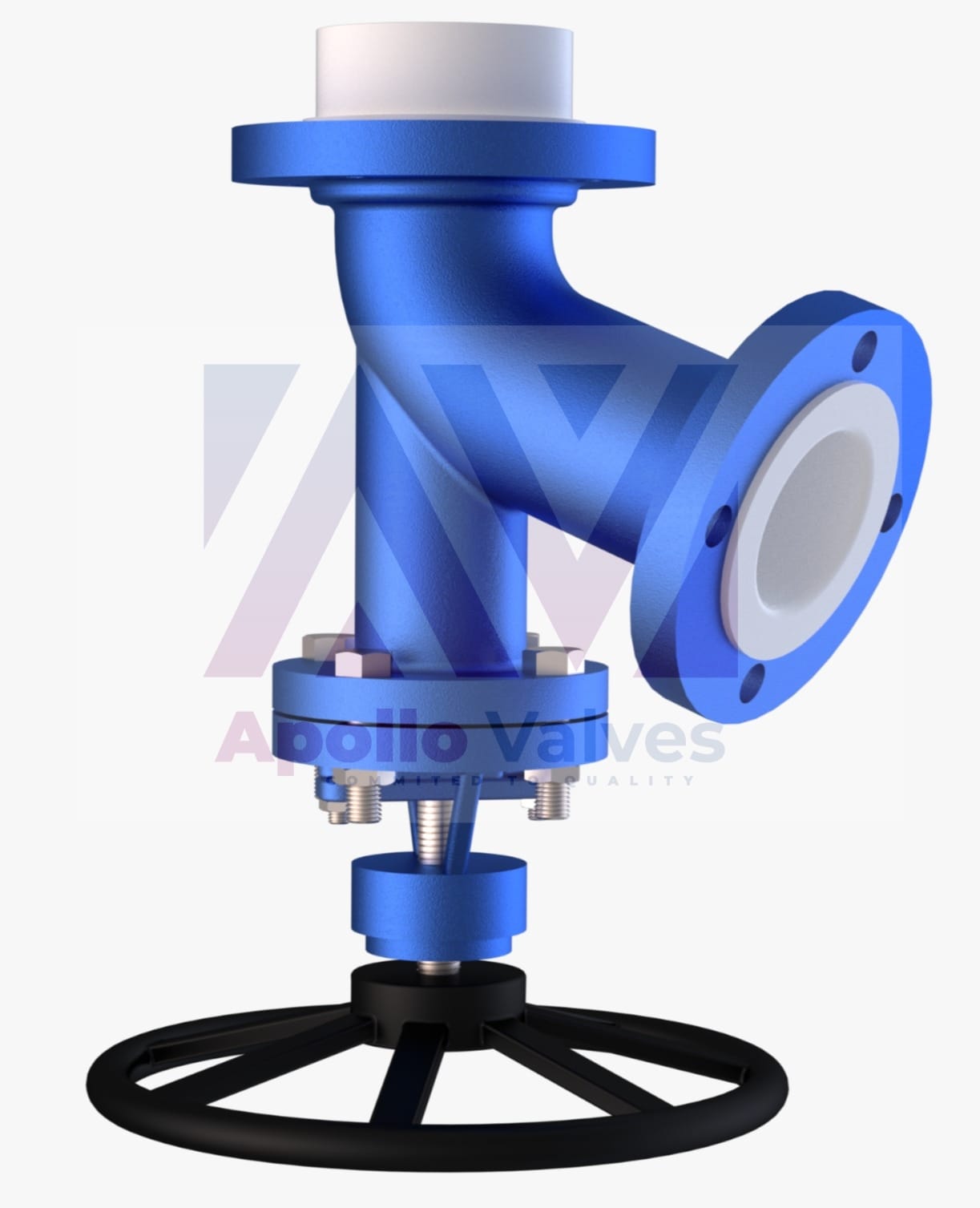

PFA Flush Bottom Tank Valve

PFA Flush Bottom Tank Valve

  • Body: ASTM A351 Gr CF8 / CF8M
  • Stem: AISI 304 / 316 + FEP / PFA Lined
  • Seat: PTFE
  • Mfg Std: BS 5351
  • Test Std: BS 6755
  • Ends: Flanged (ASA 150#)
  • Lever: AISI 304 with PVC Sleeve
  • Size Range: 50 mm To 200 mm

Need a Custom Specification or Bulk Quote?

Our technical team can assist with valve selection, material compatibility, actuator sizing and delivery planning.
